Usine chinoise 12v réverbère 12m pôle 120watt led (CHZ-ST33)

MODEL:

CHZ-ST33

LED CHIPS:

LUMILEDS 5050

COLOR TEMPERATURE:

3000K / 4000K / 5000K / 5700K / 6500K

DRIVERS:

SOSEN / INVENTRONICS

BEAM ANGLE:

TYPE II TYPE III TYPE V

REGULATION:

0-10V / Minuterie / DALI

VOLTAGE:

100 - 277V / 200~240V

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

Classe I / Classe II

MATERIALS:

Boîtier AL/dissipateur thermique AL/lentille PC

PROTECTION(IP / IK):

IP66 - IK09

INSTALLATION:

Ø 60 mm / Ø 50 mm

LIFETIME / WARRANTY:

50 000 heures / 5 ans

WORKING ENVIRONMENT:

- 35ºC ~ + 50ºC / 10%-90%RH

CERTIFICATIONS:

CB ENEC CE ROHS ISO9001 ISO14001 ISO50001 ISO45001

enquête

Écrire une critique

Апісанне прадукту

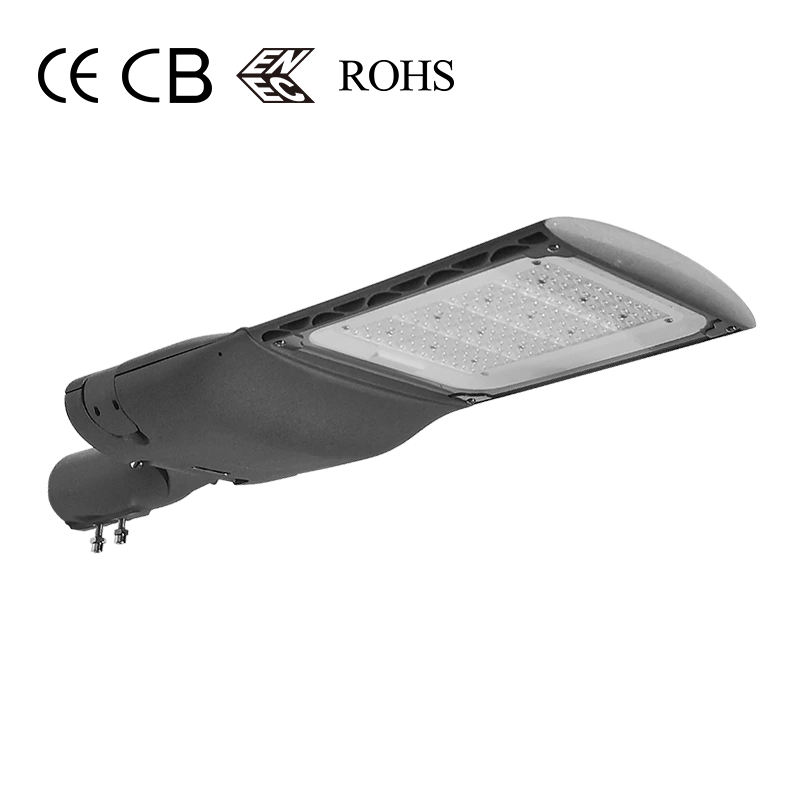

NEW ORIGINAL led street light outdoor waterproof optical lens design (CHZ-ST33)

1 All aluminum die-casting shell with high thermal conductivity and heat dissipation structure design, with a luminous efficiency of up to 160Lm/W.

2 Gear design is adopted for lamp body sleeve, and the installation angle is adjustable.

3 Low energy consumption, using high-efficiency constant current drive, saving 60% energy; Equipped with overcurrent, overvoltage, lightning, and high temperature protection, fully ensuring product life and stable performance.

4 Bat wing light distribution to achieve the best uniform lighting and improve the lighting effect.

5 Light controller can be installed optionally to facilitate light control and other intelligent control.

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W）
ST33-40WS	40	SMD5050	24	12P2S	Class I	>160
ST33-60WS	60	SMD5050	24	12P2S	Class I	>140
ST33-80WM	80	SMD5050	48	24P2S	Class I	>140
ST33-100WM	100	SMD5050	48	24P2S	Class I	>140
ST33-120WM	120	SMD5050	48	24P2S	Class I	>140
ST33-150WM	150	SMD5050	48	24P2S	Class I	>140
ST33-180WL	180	SMD5050	80	40P2S	Class I	>140
ST33-200WL	200	SMD5050	80	40P2S	Class I	>140
ST33-40WS	40	SMD5050	36	2S18P	Class II	>160
ST33-50WS	50	SMD5050	36	2S18P	Class II	>160
ST33-60WS	60	SMD5050	36	2S18P	Class II	>160
ST33-70WM	70	SMD5050	72	2S36P	Class II	>160
ST33-80WM	80	SMD5050	72	2S36P	Class II	>160
ST33-100WM	100	SMD5050	72	2S36P	Class II	>160
ST33-120WM	120	SMD5050	72	2S36P	Class II	>160
ST33-150WM	150	SMD5050	72	2S36P	Class II	>160
ST33-180WL	180	SMD5050	120	2S60P	Class II	>160
ST33-200WL	200	SMD5050	120	2S60P	Class II	>160

SMD5050 High quality LED wick

Low power consumption and high brightness

SMD LED Chips

Hiah Brightness

100-277V

Efficient Cooling

Service life

Optional optical controller

Four in one light source

High pressure die-cast aluminum with strong corrosion resistance

Angle opening and closing design

Pole mounted

Сцэнар прымянення

Widely used in trunk roads, highways, elevated roads, streets, bridges, sidewalks and other road lighting, as well as squares, schools, parks and other outdoor lighting needs.
